2000-2007 Honda XR650R Rmstator 250W Ac To Dc Conversion Battery Charging Kit

Part # RMS900-108297

$389.99

Free Shipping on Orders Over $50 to the Lower 48 States

Adding to cart… The item has been added

Details

BrandRmstator
Part numberRMS900-108297
ConditionNew

Description

This kit is designed to convert the Honda XR650R charging system to a true three phase 250W output intended to charge a battery for power electrical accessories such as lights, heated gear, radiator fan, GPS/ gauges, and more.
It currently includes the stator and SERIES voltage regulator rectifier.
Note that this kit requires custom installation. You must install and mount a battery, DC CDI box, voltage regulator, and wire accordingly.

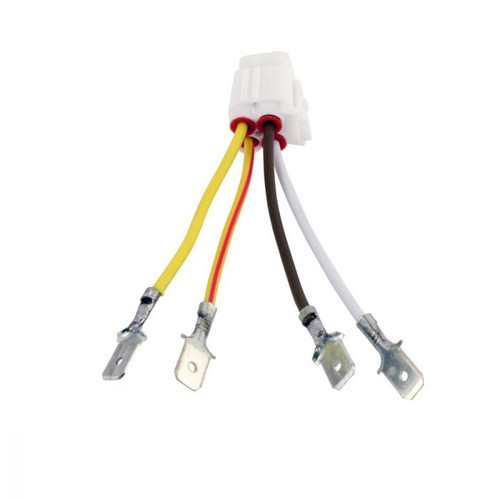

Connectors included
All products are tested

Runs much cooler than the Shunt and MOSFET voltage regulator rectifier.
Power only flows through the electrical components when the battery is charging.
Allows the stator to have lower current flowing when not used, extending its lifetime.
The regulator is easier to mount because it’s smaller than the OEM one.
With enhanced technology design
This product is an advanced technology that lowers operating temperatures for extended longevity and better performance than the OEM part.


Stator:
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius
Pick up pulsar coil included
Rubber grommet included

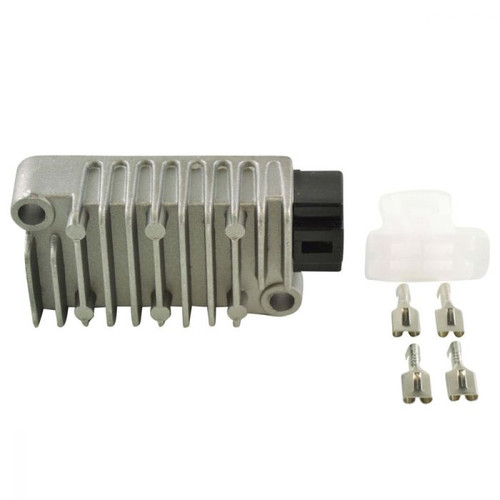

SERIES Voltage Regulator:
Improved heat sink and charging capabilities
Higher grade of electric components
We even include the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

Fits

  • 2000-2007 Honda XR650R

Part Number: RMS900-108297
